From: Lara Madden
Subject Tektronix 11802 scope 50 ghz sampling oscilloscope
Tektronix 11802 Digital Sampling Oscilloscope:
This is perhaps the finest digital sampling oscilloscope ever made. The unit is in excellent condition
physically, and is functions perfectly electrically. Virtually all of the operation of the 11802 is done
via the touch-screen and two knobs located to the lower right of the screen. The "AutoSet" button
provides immediate display of an applied signal, correctly scaled and triggered with just one touch.

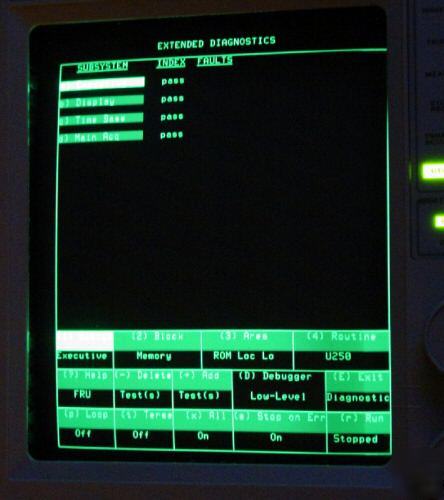

The unit has been tested with a sample head to confirm proper operation, and passes all self-test

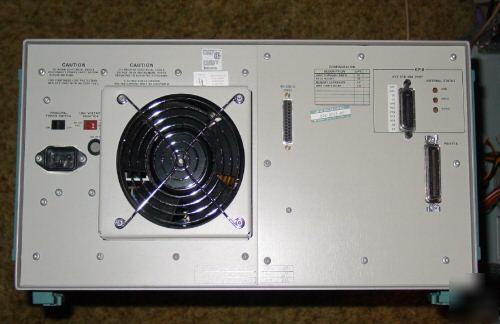

diagnostics with no problems. See pictures for more details and version/revision information.
o The 11802 accepts up to two sampling heads each with up to 2 channels for a total of 4 channels.
o Sampling heads can be selected from a variety of available models ranging in speed from 1 to 50 GHz.
o Built-in delay lines allow internal triggering and viewing of the leading edge of the trigger event.
o Vertical system - Vertical resolution: 8 bits full sreen (80 ┬ÁV LSB at 2 mv/div deflection factor)
o Deflection factors: 2...255 mV/div in 1 mV/div increments; 4...510 mV/div in 2 mV/div increments
o Horizontal system - Main and window time base: 1 ps/div...5 mV/div
o Record length 512, 1024, 2048, 4096, 5120 samples
Cosmetically the unit is in very nice shape, no major gouges or dents in the case, there are a few
on this unit. Because I am not a certified calibration laboratory, I can not guarantee the operation
of the unit beyond basic function. I guarantee the unit will not be DOA, and offer a 3 day period
after receipt for return if dissatisfied. I do not do second chance offers, if you receive one, it's fake!
Contact: LaraMadden@rockford-industrial.com (Lara Madden)
